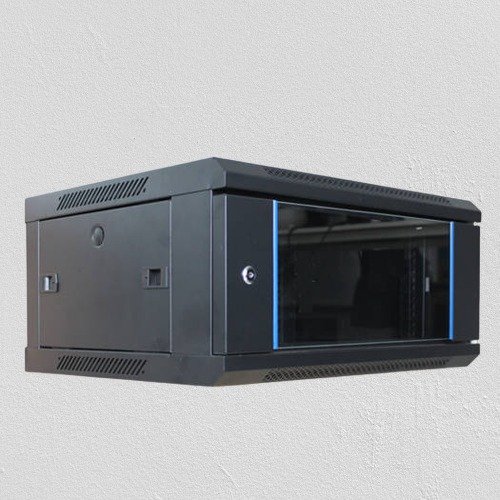

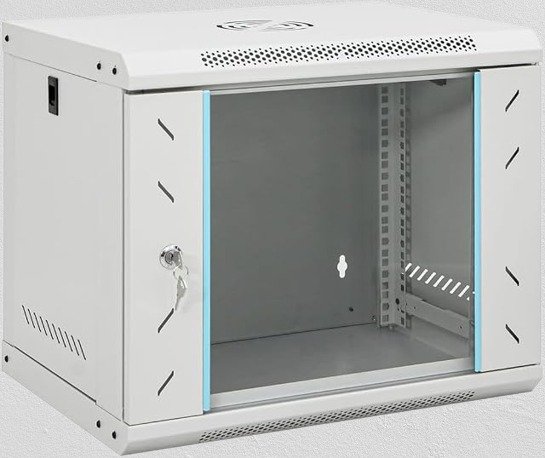

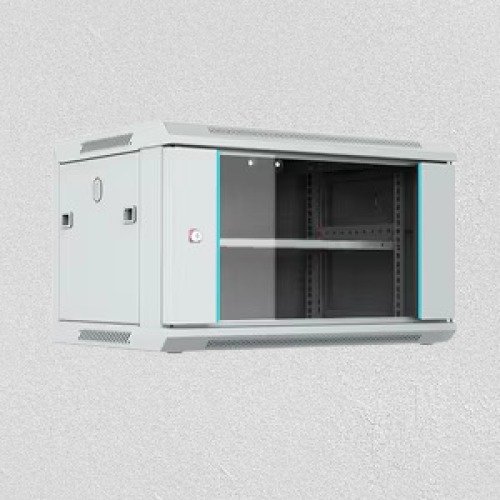

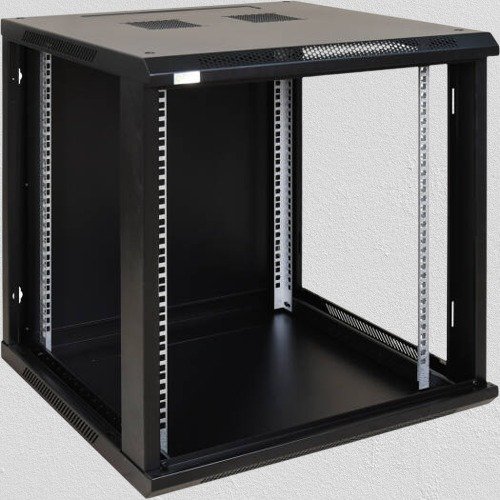

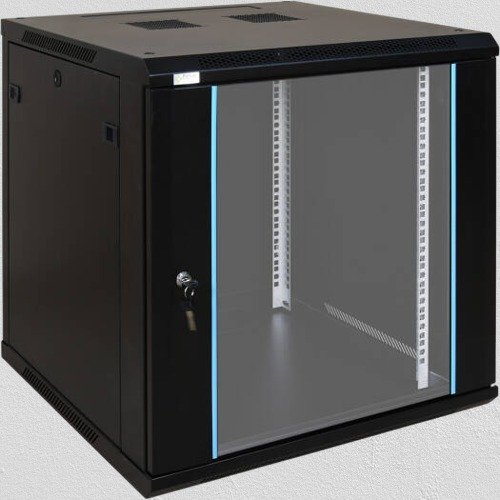

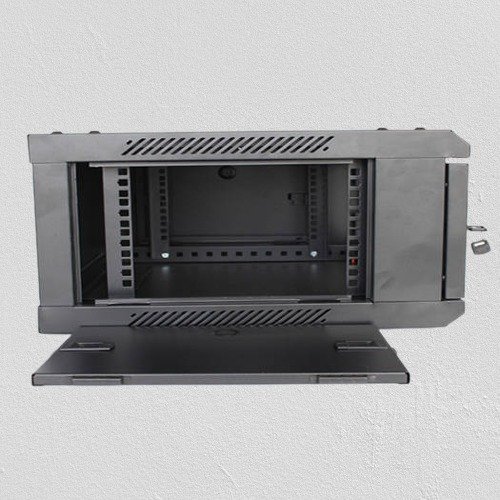

The BIXEL 19-Inch Wall Mount Network Cabinet is a durable and secure rack enclosure designed for organizing and protecting networking equipment in offices, server rooms, CCTV installations, and telecom applications. Manufactured from high-quality SPCC cold rolled steel with a powder-coated finish, the cabinet provides excellent strength and long-term reliability for modern IT infrastructure.
The cabinet features a tempered glass front door with lock and two keys, removable side panels for convenient access, and multiple cable entry points on the top, bottom, and rear panel for easy cable management. Ventilation openings support optional cooling fans, while the front door opens beyond 180° for simplified installation and maintenance.
Built in accordance with ANSI/EIA RS-310-D and IEC standards, this 19-inch wall mount rack cabinet is suitable for housing switches, patch panels, routers, DVRs, NVRs, and other rack-mounted equipment. Its knock-down design reduces shipping costs and simplifies assembly.
Available in Black (RAL9004) and Grey (RAL7035) powder-coated finishes, the cabinet complements a variety of office, industrial, and data center environments.
| Model No. | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) | Packing Dimension (mm) | Volume (CBM) | Add to Quote |
|---|---|---|---|---|---|---|---|
| WM.6404 | 4 | 600 | 450 | 280 | 635×485×160 | 0.049 | Add to Quote |
| WM.6604 | 600 | 635×635×230 | 0.093 | ||||
| WM.6406 | 6 | 450 | 368 | 635×485×160 | 0.049 | Add to Quote | |
| WM.6606 | 600 | 635×635×230 | 0.093 | ||||
| WM.6409 | 9 | 450 | 501 | 635×485×235 | 0.072 | Add to Quote | |
| WM.6609 | 600 | 635×635×231 | 0.093 | ||||
| WM.6412 | 12 | 450 | 635 | 665×595×236 | 0.093 | Add to Quote | |
| WM.6612 | 600 | 665×635×231 | 0.098 | ||||
| WM.6415 | 15 | 450 | 769 | 635×940×98, 802×460×132 | 0.137 | Add to Quote | |
| WM.6615 | 600 | 635×757×236 | 0.113 | ||||
| WM.6418 | 18 | 450 | 901 | 635×940×98, 935×460×132 | 0.137 | Add to Quote | |
| WM.6618 | 600 | 935×630×236 | 0.139 |

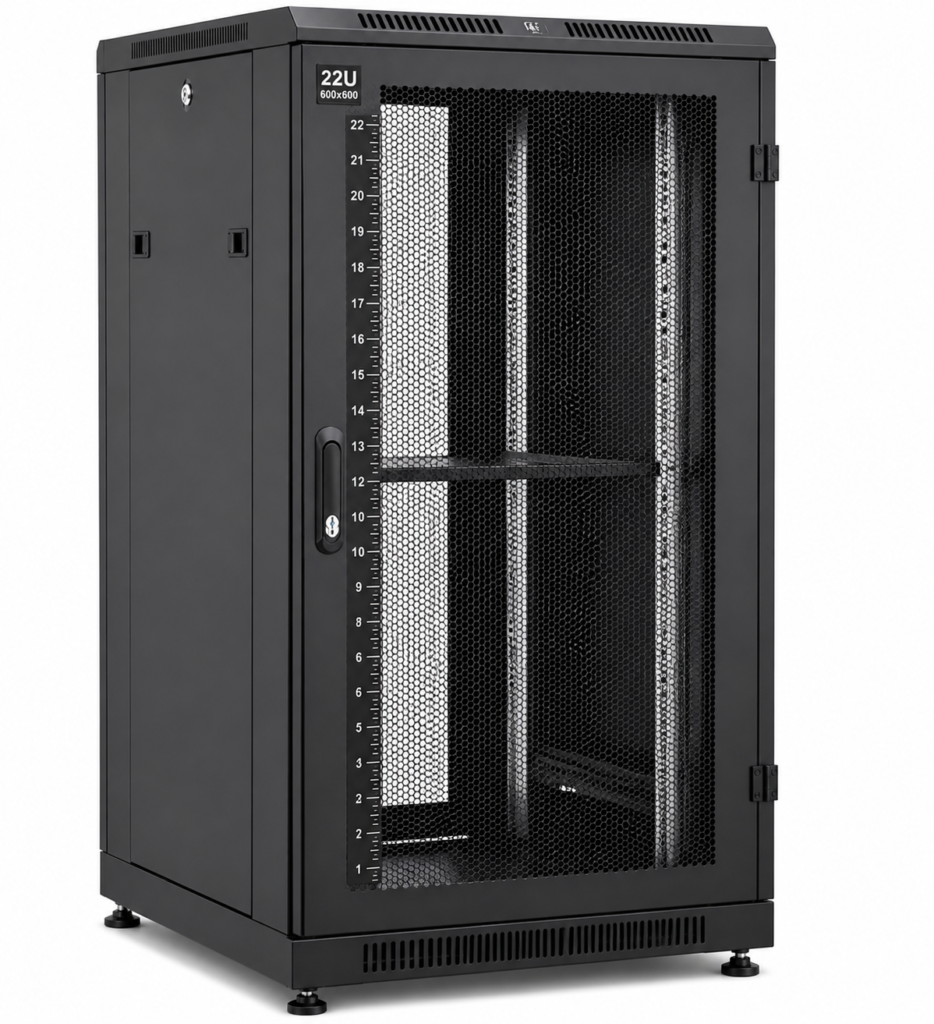

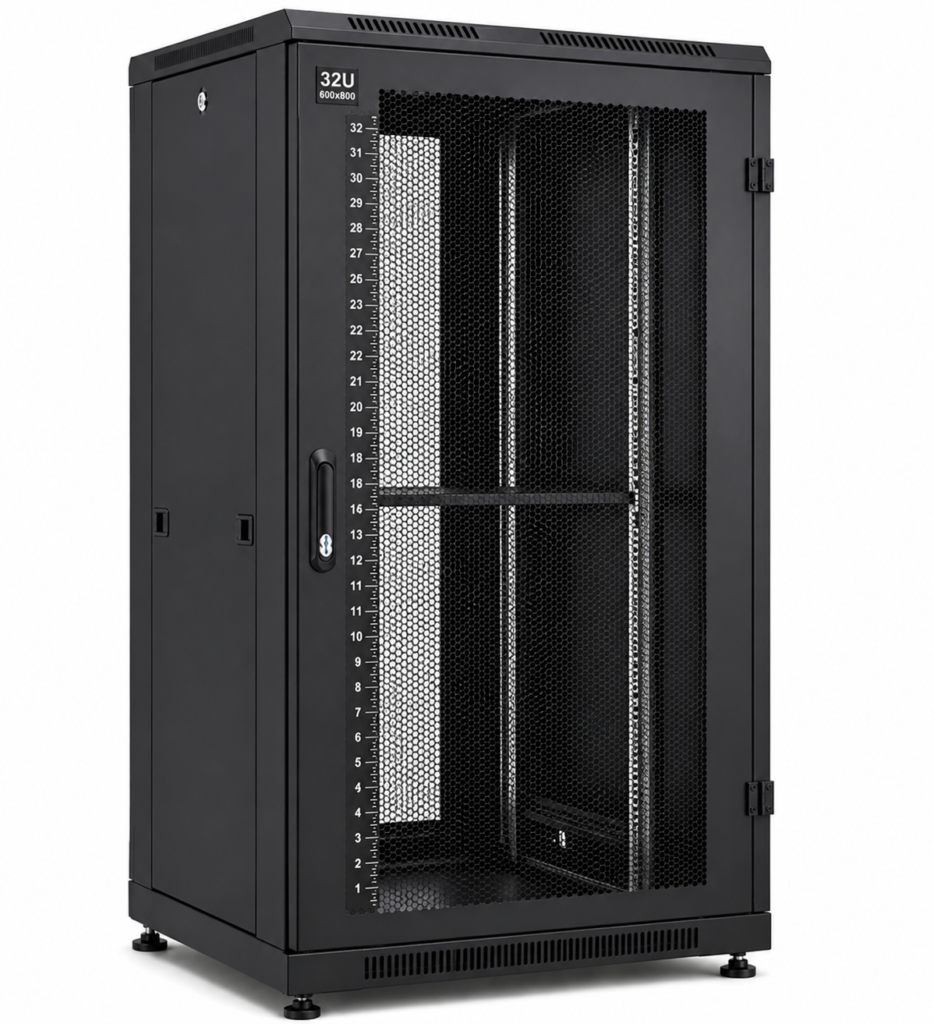

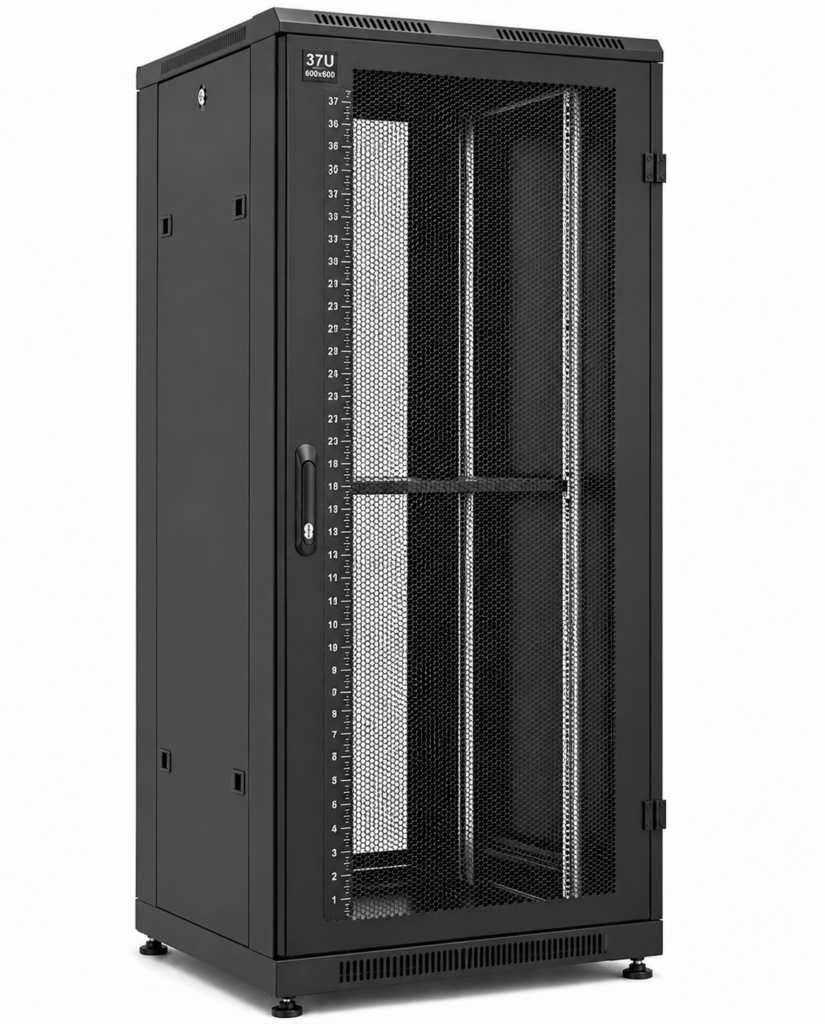

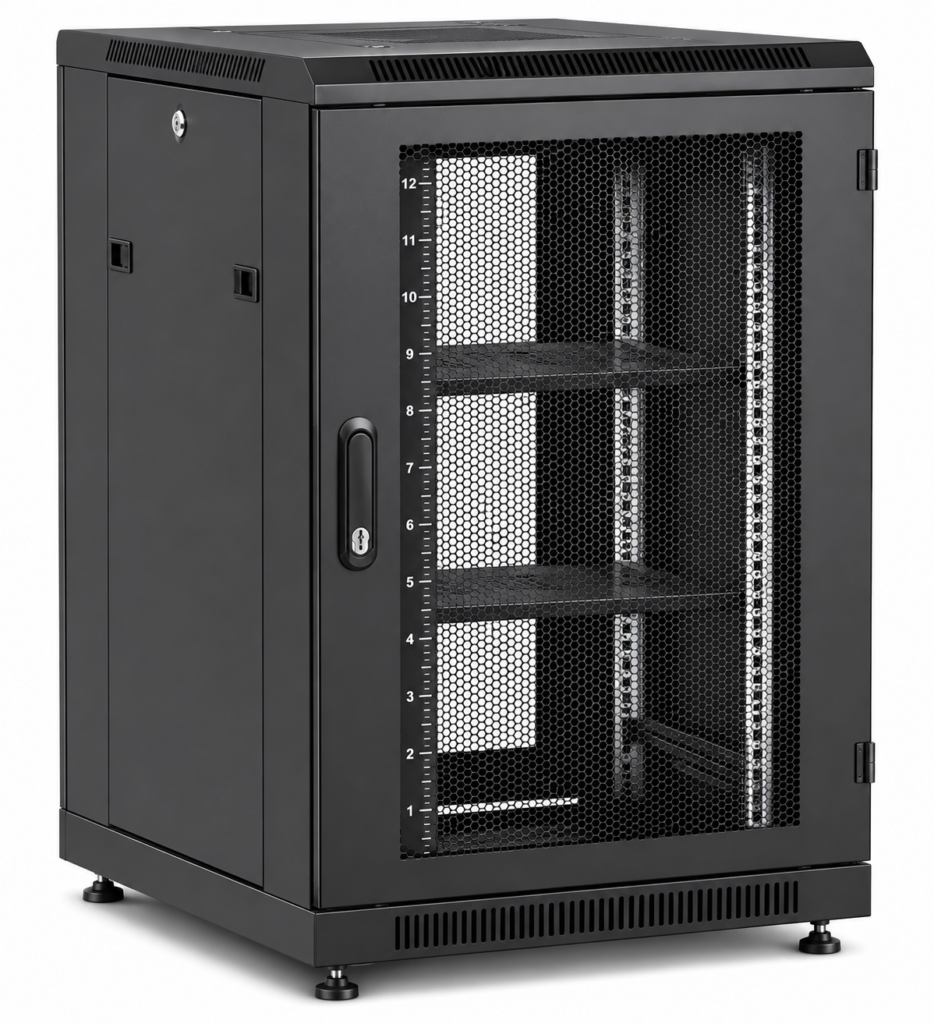

The BIXEL Floor-Standing Network Cabinet is a premium 19-inch rack enclosure designed to provide secure, organized, and efficient housing for servers, switches, patch panels, UPS systems, routers, and other networking equipment. Manufactured from high-quality SPCC cold rolled steel with a durable powder-coated finish, this floor-standing rack cabinet delivers exceptional strength, stability, and long-term reliability for modern IT infrastructure.
Engineered to meet international 19-inch rack standards, the BIXEL network cabinet is suitable for data centers, server rooms, telecom installations, structured cabling systems, and enterprise networks. The assembled frame structure supports both assembled and knock-down shipment, helping reduce transportation costs while ensuring easy installation and maintenance.
Featuring removable side panels, lockable front and rear doors, multiple cable entry points, and up to 71% ventilation efficiency, the cabinet provides excellent airflow and cable management for high-density network environments. Heavy-duty casters and adjustable feet offer flexibility for both mobile and fixed installations.
Available with mesh front doors for maximum airflow or tempered glass doors for enhanced visibility and security, BIXEL floor-standing cabinets are designed to protect valuable IT equipment while maintaining a clean and professional appearance.
| Part NO. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) | Add to Quote |
|---|---|---|---|---|---|
| BXFS-6609 | 9U | 600 | 600 | 589 | Add to Quote |
| BXFS-6612 | 12U | 600 | 722 | ||
| BXFS-6615 | 15U | 600 | 855 | ||
| BXFS-6815 | 800 | ||||
| BXFS-6618 | 18U | 600 | 988 | ||
| BXFS-6818 | 800 | ||||
| BXFS-6118 | 1000 | ||||
| BXFS-6622 | 22U | 600 | 600 | 1166 | Add to Quote |
| BXFS-6822 | 800 | ||||
| BXFS-6122 | 1000 | ||||
| BXFS-8822 | 800 | 800 | |||
| BXFS-8122 | 1000 | ||||
| BXFS-6627 | 27U | 600 | 600 | 1388 | Add to Quote |
| BXFS-6827 | 800 | ||||
| BXFS-6127 | 1000 | ||||
| BXFS-8827 | 800 | 800 | |||
| BXFS-8127 | 1000 | ||||
| BXFS-6632 | 32U | 600 | 600 | 1610 | Add to Quote |
| BXFS-6832 | 800 | ||||
| BXFS-6132 | 1000 | ||||
| BXFS-8832 | 800 | 800 | |||
| BXFS-8132 | 1000 | ||||
| BXFS-6637 | 37U | 600 | 600 | 1833 | Add to Quote |
| BXFS-6837 | 800 | ||||
| BXFS-6137 | 1000 | ||||
| BXFS-8837 | 800 | 800 | |||
| BXFS-8137 | 1000 | ||||
| BXFS-6642 | 42U | 600 | 600 | 2055 | Add to Quote |
| BXFS-6842 | 800 | ||||
| BXFS-6142 | 1000 | ||||
| BXFS-8842 | 800 | 800 | |||
| BXFS-8142 | 1000 | ||||
| BXFS-8147 | 47U | 800 | 1000 | 2277 | Add to Quote |

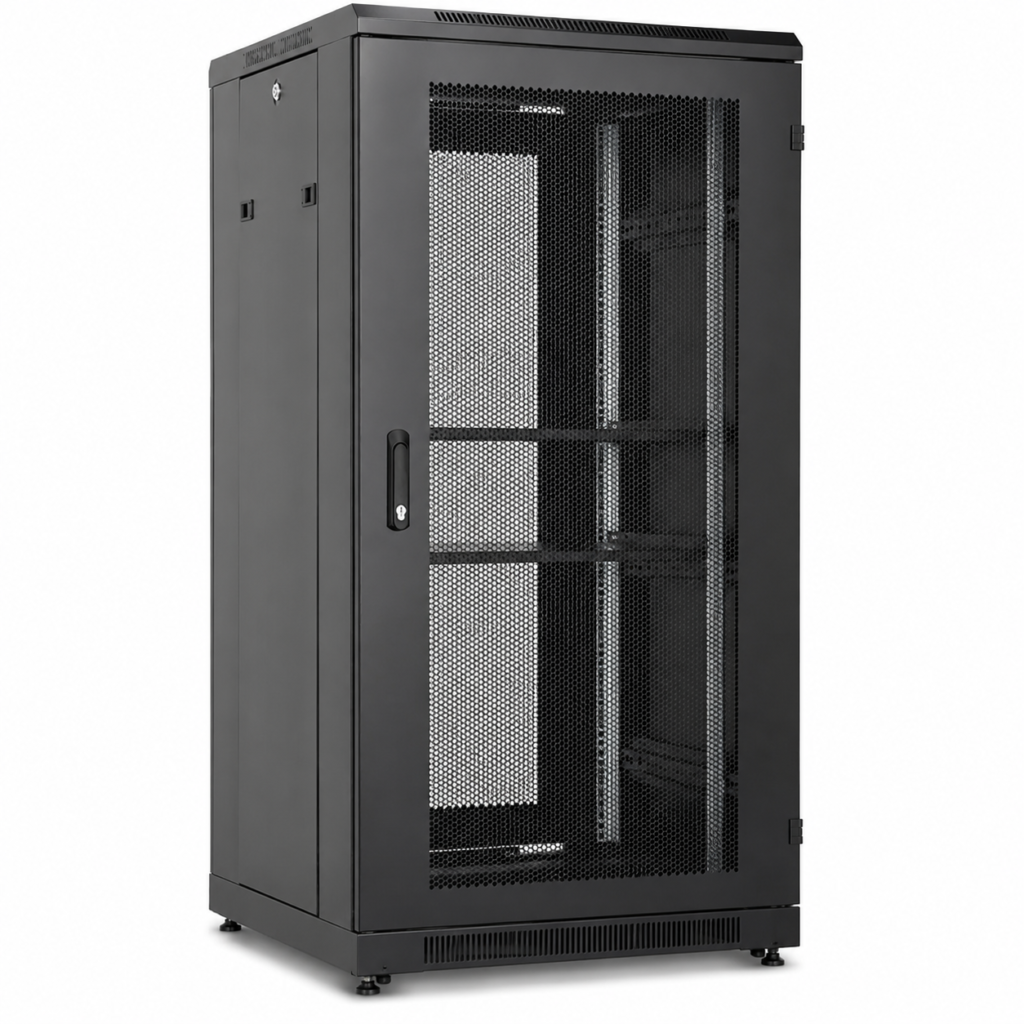

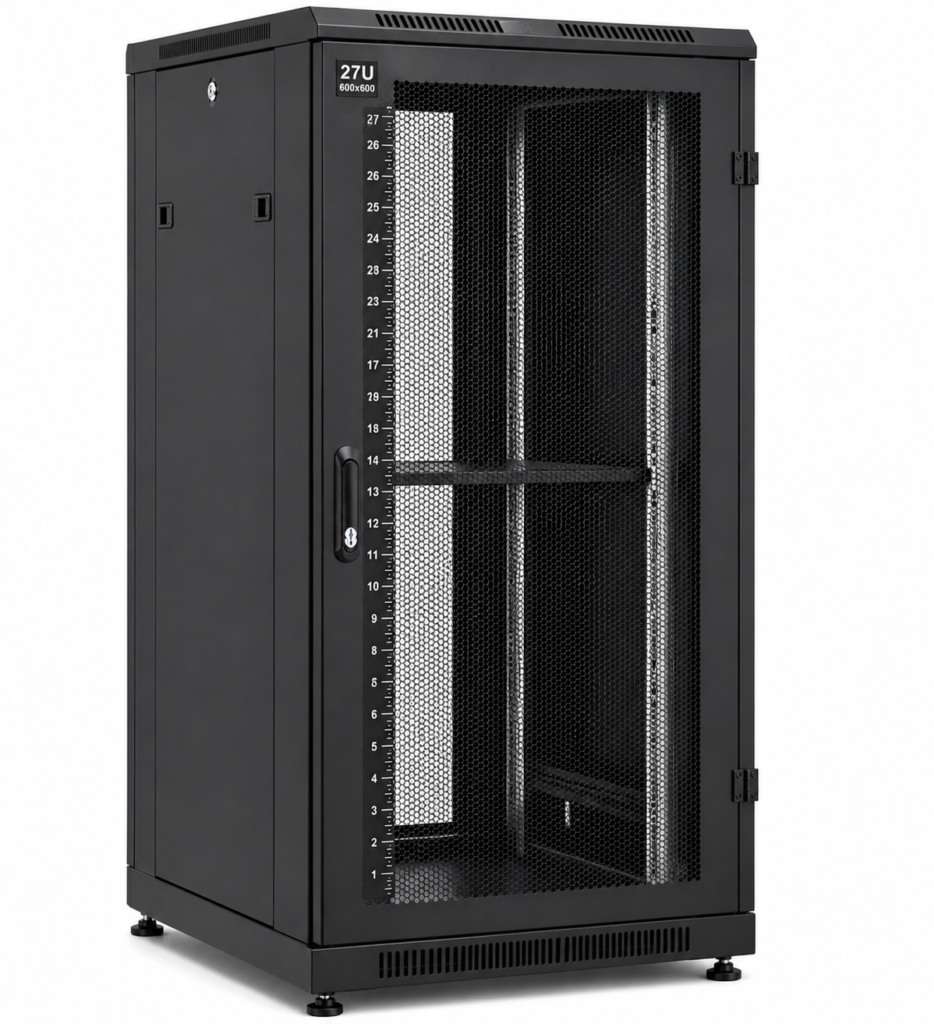

BIXEL BXFS-6127 27U Floor Standing Network Cabinet is engineered for large networking equipment, providing deep rack space, durability, and organized cable routing.

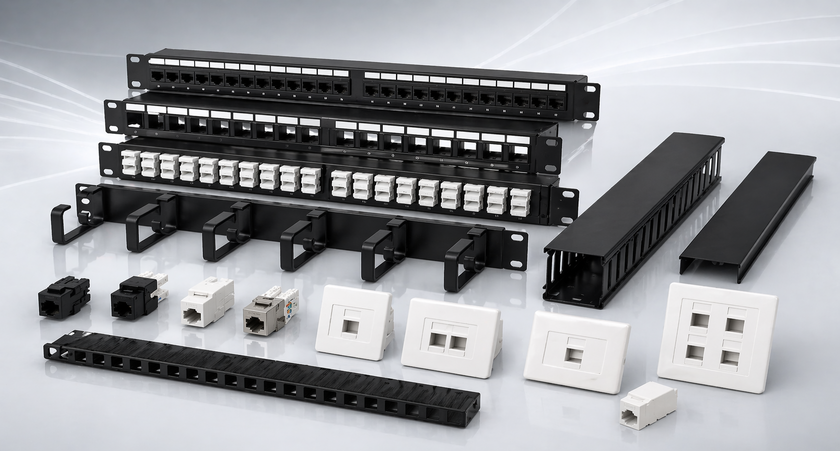

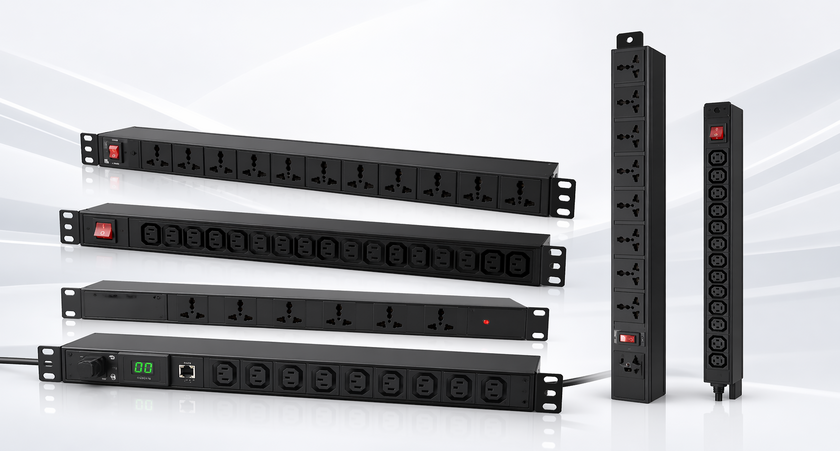

BIXEL provides network cabinets, server racks, wall-mount racks, rack accessories, PDUs, cable managers, shelves, cooling fans, patch panels, and cabinet solutions for secure, organized, and reliable IT infrastructure installations.
